Fujian Taian Lamination Film Co., Ltd is an innovative manufacturer in china. And specializing in the research, development, and manufacturing of BOPP Glossy Metalized thermal lamination film. We are committed to providing professional services and competitive prices for our clients. Welcome to send inquiry to us. We will give you best price and service.

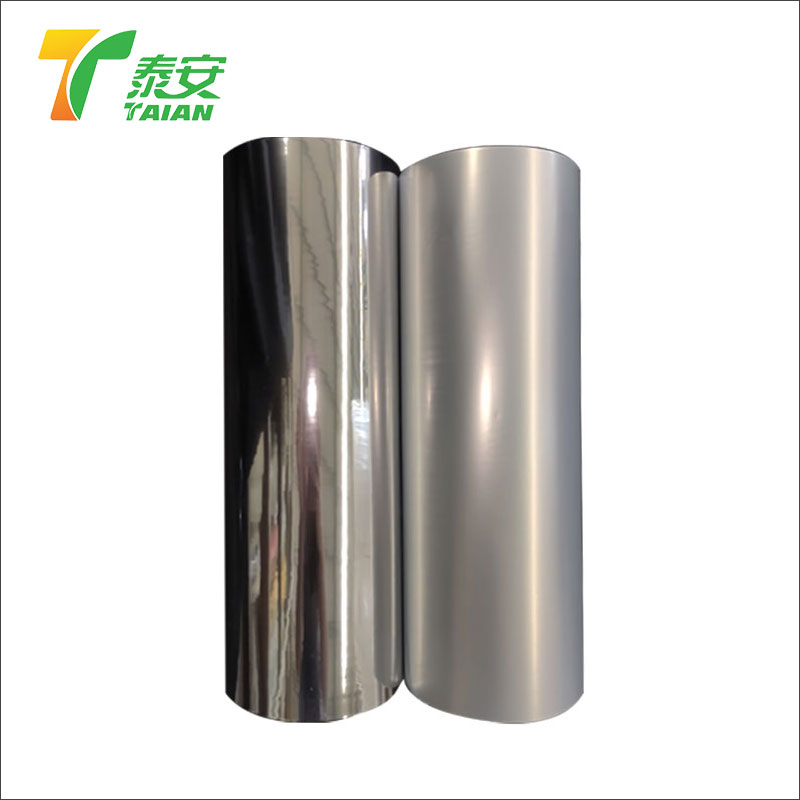

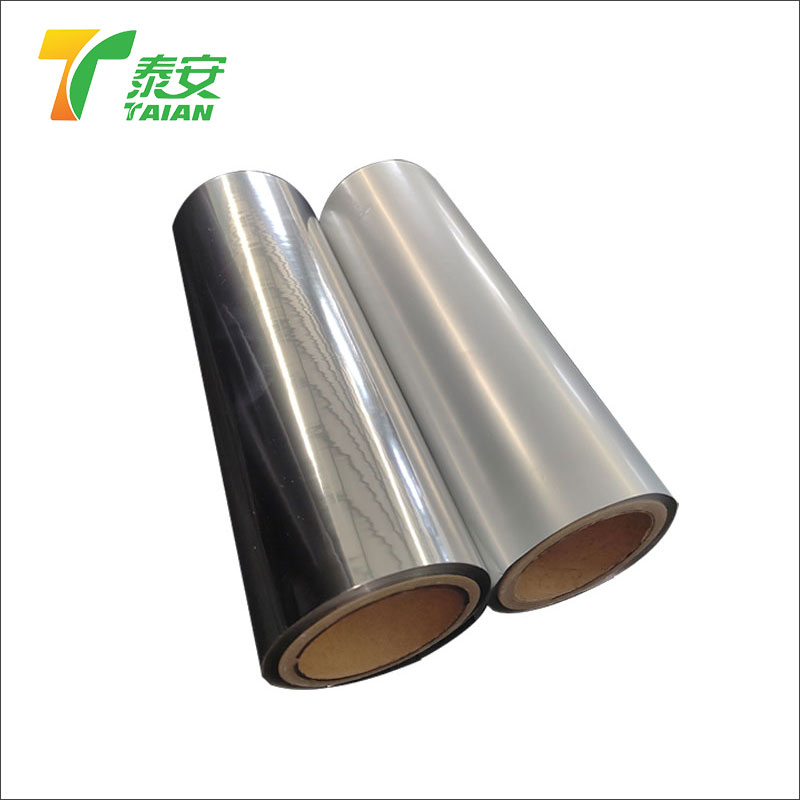

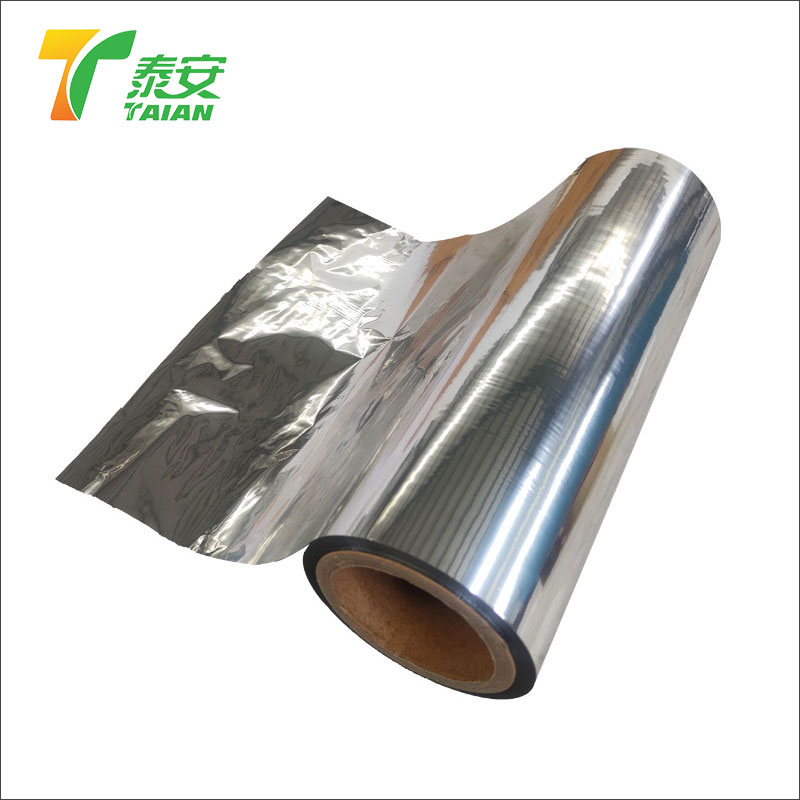

The main color of BOPP Glossy Metalized Thermal Lamination Film is bright silver, which can reflect the portrait like a mirror after coating, and is very popular. The bright metalized surface can cover the natural color of its coated product, change its appearance color, and can print words and patterns in the metalied film.
BOPP Glossy Metalized Thermal Lamination Film is designed for laminating on daily consumable packing boxes, such as those for groceries, medicines, wines, etc. This film, treated chemically to enhance adhesion to various inks and coatings, exhibits improved metal adhesion when metalized on the treated side. It finds applications in flexible packaging and metalizing processes that demand heightened bond strength and adhesion. It's important not to corona treat the chemically treated surface, as it may compromise the adhesion properties.
BOPP Glossy Metalized Thermal Lamination Film Specification:
Material: BOPP Metalized Base Film + EVA Hot Glue
Color: Silver, Gold, and other colors according to Pantone
Regular Thickness: 20 microns - 30 microns
Normal Finishes: above 42 dynes
Chemical Treatment Finishes: reaching 52 dynes
Maximum Width: 1600mm
Paper Core: 1", 2", 2.25", 3", 6"
BOPP Glossy Metalized Thermal Lamination Film Applications:
Book covers, posters, calendars, maps, documents, photographs, albums, bags for food, digital printing, pop sign etc.
BOPP Glossy Metalized Thermal Lamination Film Certificate of Analysis
|
|
Properties |
|
Position |
Units |
Test Method |
TRBY 22 Matt |
|
Physical |
||||||
|
|
Average Thickness |
Micron |
D-374-C |
22 |
||
|
Gauge |
|
82 |
||||
|
Mils |
|
0.82 |
||||
|
AverageGram age |
g/㎡ |
|
18.41 |
|||
|
Attainability(min) |
dyne/cm |
D-2578 |
52/40 |
|||
|
Yield
|
㎡/Kg |
D-4321 |
54.31 |
|||
|
ms/Kg |
|
84.19 |
||||
|
|
||||||
|
Optical |
||||||
|
|
Gloss(at 45°)[ Base Film] |
Gardner |
D-2457 |
10 |
||
|
Haze (Base Film) |
|
% |
D-1003 |
70-75 |
||
|
Mechanical |
||||||
|
|
Tensile Strength |
MD |
Kg/c㎡ |
D-882 |
660 |
|
|
Psi |
9385 |
|||||
|
TD |
Kg/c㎡ |
D-882 |
1180 |
|||
|
Psi |
16780 |
|||||
|
Elongation |
MD |
% |
D-882 |
185 |
||
|
TD |
|
60 |
||||
|
|
||||||
|
Thermal |
||||||
|
Shrinkage |
MD |
% |
D-1204 |
3.00 |
||
|
(at 120℃, 5min) |
TD |
|
|
2.00 |
||
|
Lamination Temperature |
℃ |
|
85-110 |
|||
|
℉ |
|
185-230 |
||||
MD = machine direction
TD = cross machine direction
BOPP Glossy Metalized Thermal Lamination Film structure :
BOPP Glossy Metalized Thermal Lamination Film package details:
